Lift u obliku makaza novi Gunter Grosmann GG6000MM

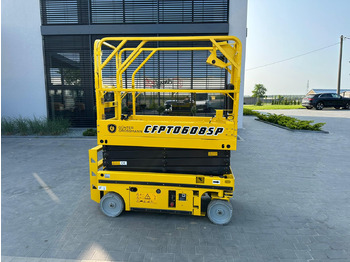

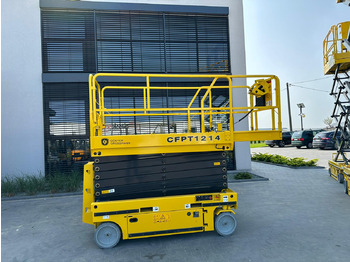

THE NEW GÜNTER GROSSMANN Scissor Lifts

available in 6, 8 and 12 meter platform height

THE GÜNTER GROSSMANN Scissor Lift (230KG PAYLOAD) IS BRAND NEW.

FULLY ELECTRICALLY POWERED THEREFORE EXTREMELY DURABLE

VERY SUITABLE FOR CONSTRUCTION GARDEN AND INDOOR AND OUTDOOR WORK

GÜNTER GROSSMANN IS A HIGH-QUALITY MACHINE MADE FOR A EUROPEAN COMPANY.

THE MACHINE HAS A VERY DURABLE CONSTRUCTION AND LIKE ALL OUR MACHINES HAS BEEN LONG-TERM TESTED

Specification

Platform load capacity: 230 kg

Load capacity with extended platform: 130 kg

working height: 7.8m

max. platform height: 5.8 m

Extendable platform: 900 mm

Minimum Clearance: 86mm

Wheelbase: 1085mm

Lift motor: 24/3.3V/Kw

Battery: 4x6/200V/Ah

Battery charger: 24/25V/A

Wheels: 305*100mm

Weight: 1460 kg

MAIN DIMENSIONS

Length (L): 1860mm

Width (W): 760mm

Height (rail up): 2180 mm

Height (rest down): 1840 mm

Platform dimensions: 1670*740mm

RANGE

min. Turning radius (inner wheels): 0 mm

min. Turning radius (outer wheels): 1640 mm

Compound driving speed: 3.5 km

Travel speed (elevated): 0.8 km/h

Speed up/down: 18/22 mm/sec

Climbing ability: 25%

working slope: 1.5 - 3
